Experience the Future of Embroidery with the ALL NEW Marquee
Whether you're a startup or a growing enterprise, the Marquee adapts to your needs,
offering powerful tools to increase output without compromising quality.
Marquee Series Commercial Embroidery Machines with 10.1" HD Touchscreen Panel
$9,999.00
Skip to product information
Contact Us

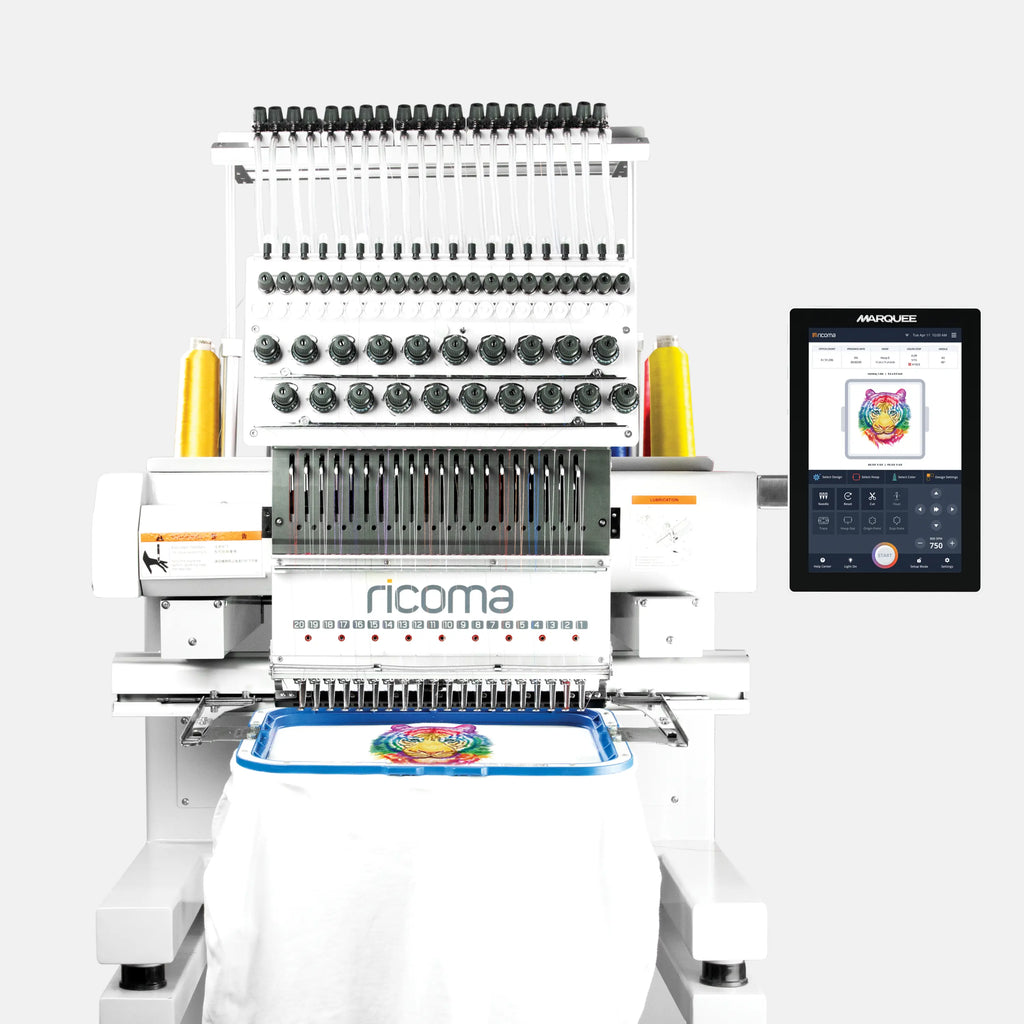

Marquee Series Commercial Embroidery Machines with 10.1" HD Touchscreen Panel
The Marquee Series Commercial Embroidery Machines are professional embroidery machines built for speed, precision, and scalable production. Available in 12, 15, and 20-needle configurations, the Marquee Series offers single-head, two-head, three-head, and four-head models to support everything from startup embroidery businesses to high-volume commercial shops.
Designed for caps, hats, shirts, jackets, bags, patches, and oversized garments, the Marquee Series delivers high-speed embroidery, multi-color stitching, and commercial-grade durability. Each machine is powered by a 10.1-inch HD touchscreen control panel for fast setup, easy design management, and smooth production workflow.
Talk to a Ricoma Expert Today
Have questions or need pricing and shipping details? Our team is here to help. Click Contact Us below to submit your information, and a specialist will reach out to provide personalized guidance and answers to help you move forward with confidence.

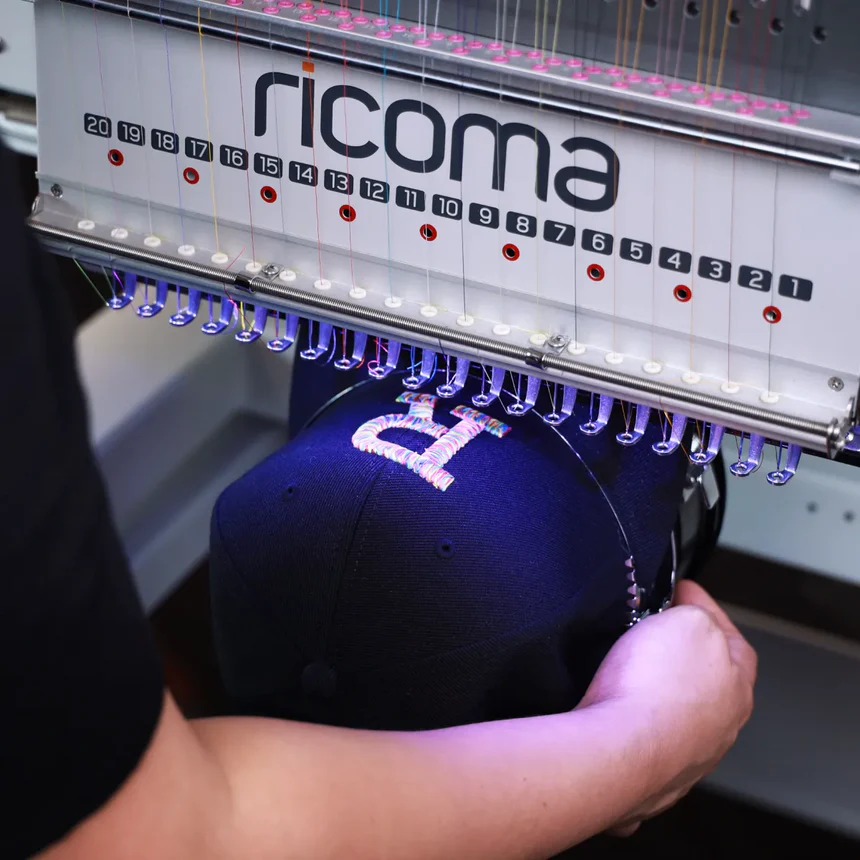

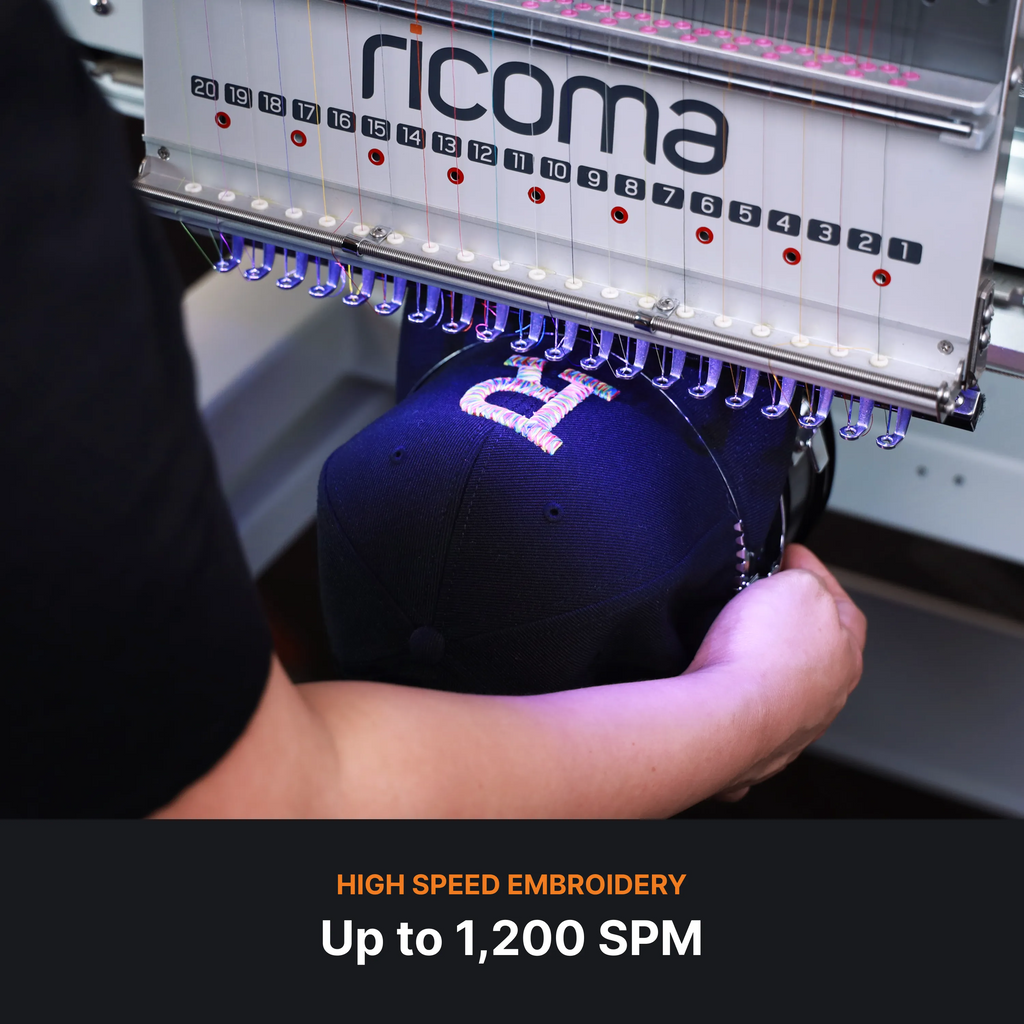

Maximum Speeds of Up to 1,200 SPM
Achieve remarkable speed and efficiency with stitching rates of up to 1,200 SPM stitches per minute, allowing you to complete projects quickly and effortlessly. Experience faster turnaround times and increased productivity without compromising on quality.

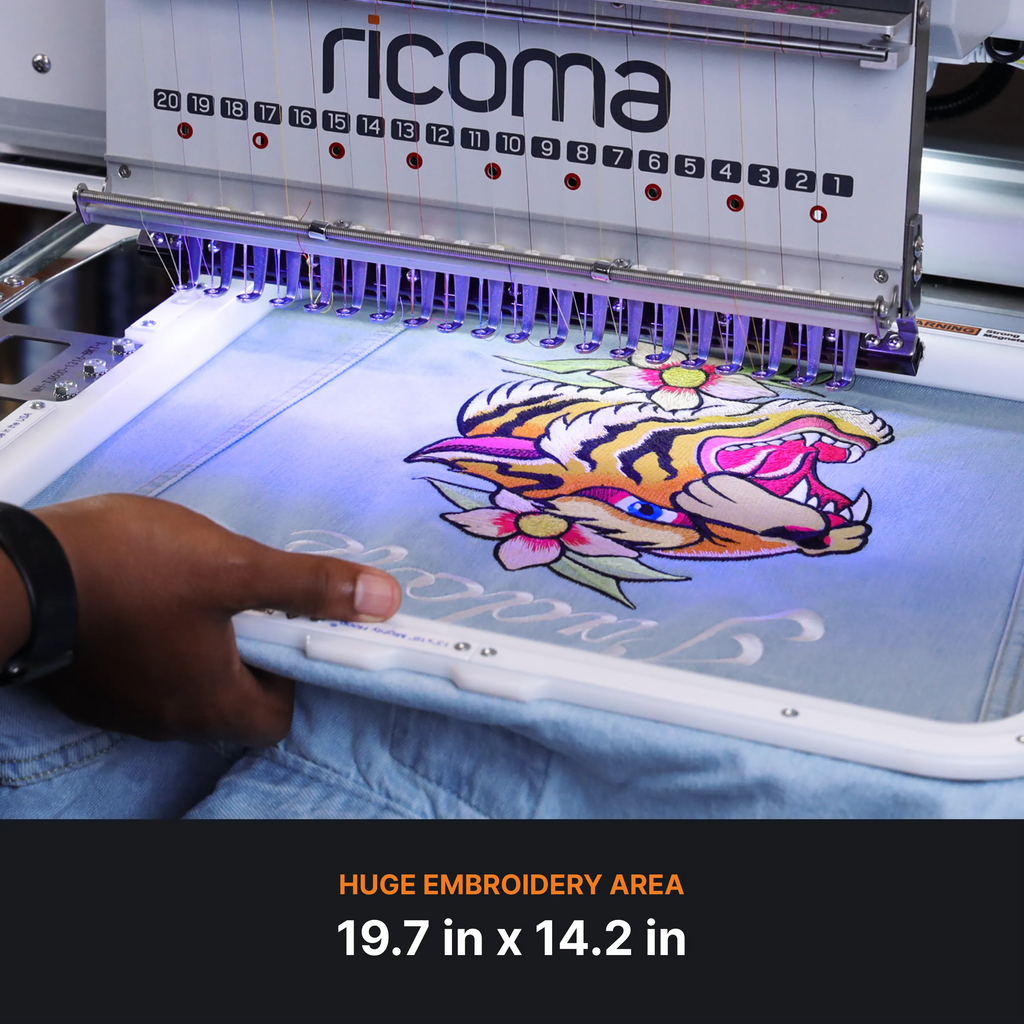

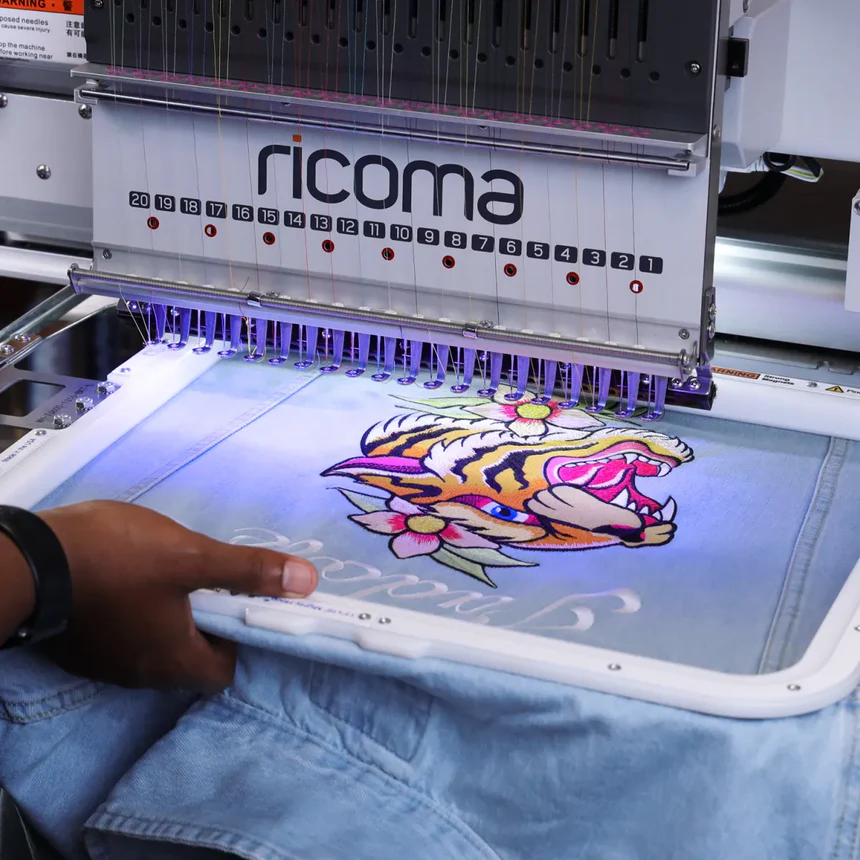

Maximum Embroidery Area 19.7 in x 14.2 in
Achieve greater versatility with a large embroidery area, allowing you to create intricate designs on a wider range of items. Enhance your productivity and creativity by handling bigger projects effortlessly and efficiently.

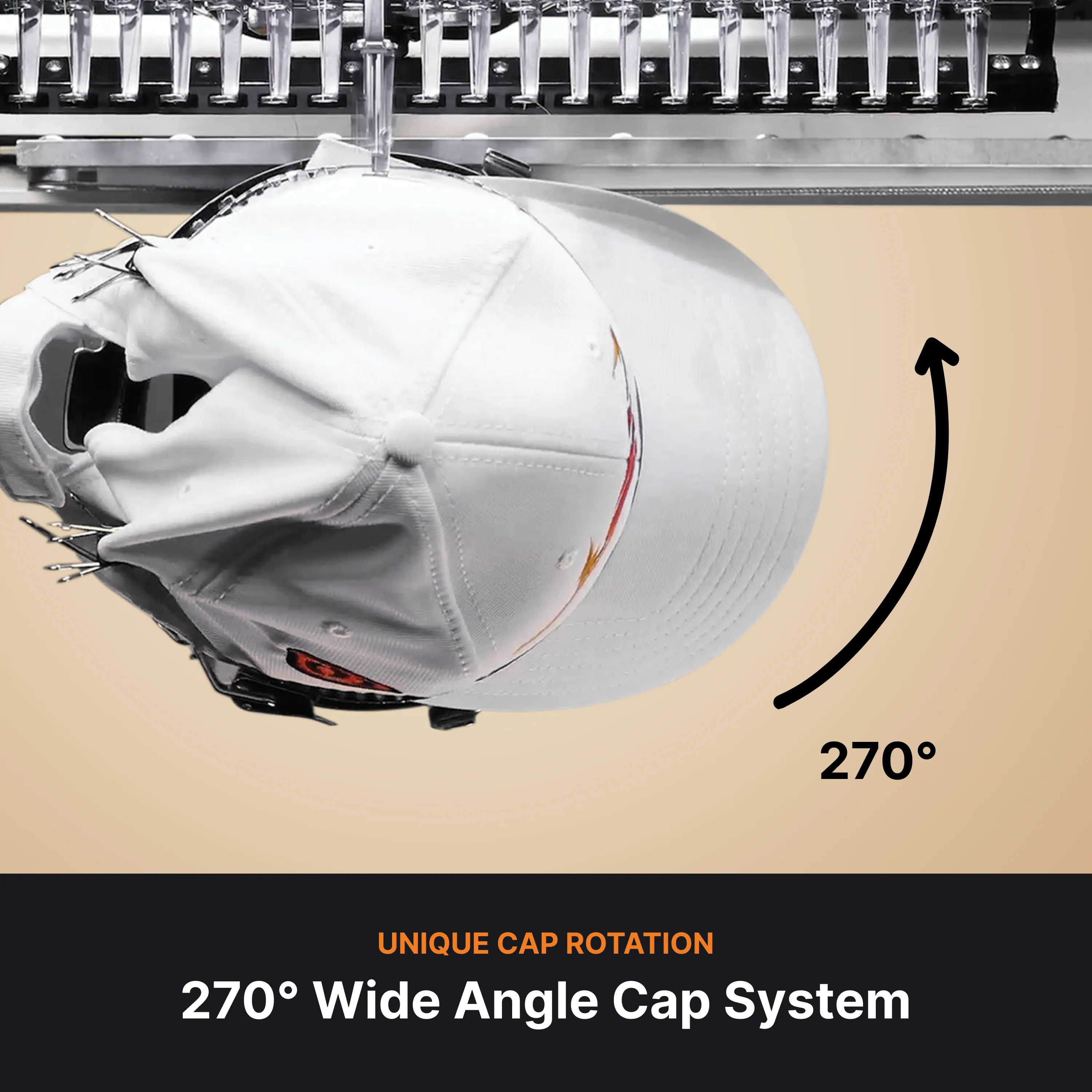

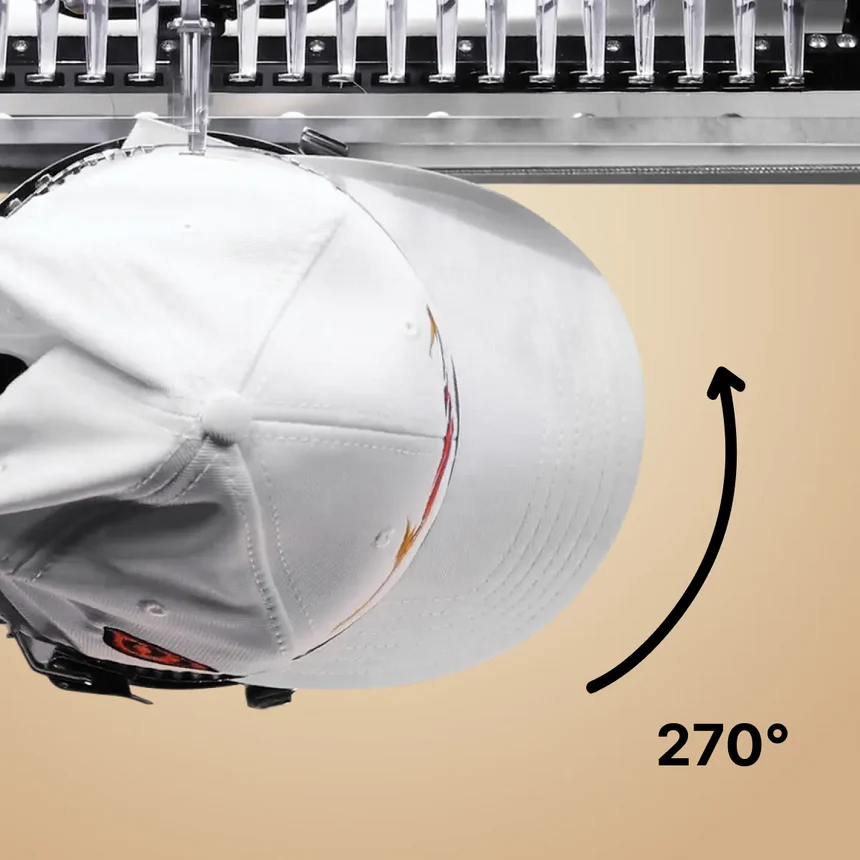

270° Wide Angle Cap System
Experience seamless cap embroidery with our 270-degree rotation in a single run, ensuring perfect design placement every time. Maximize your creativity and efficiency by easily accessing hard-to-reach areas on caps with precision and ease.

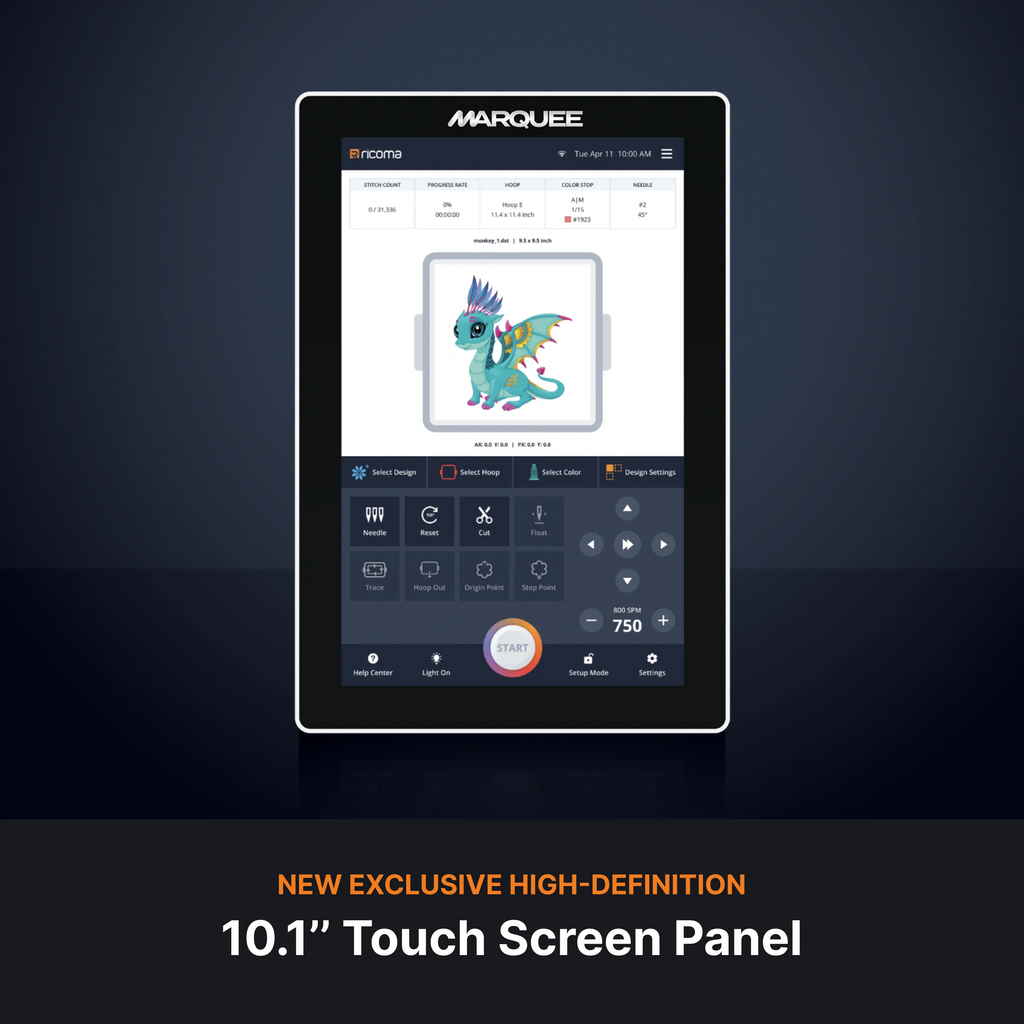

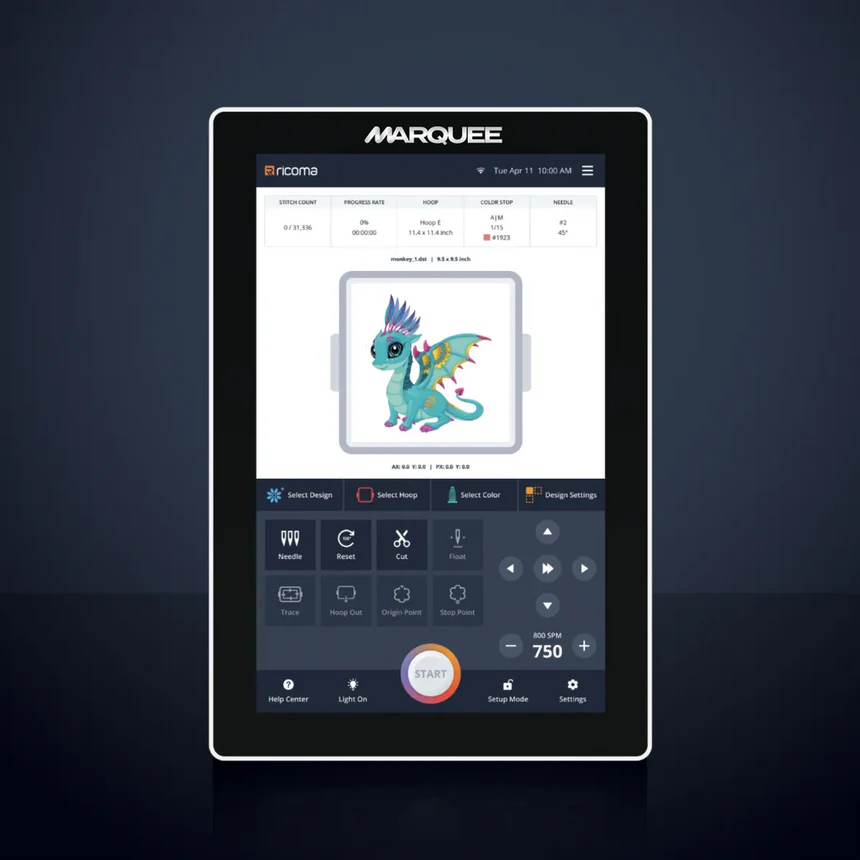

10.1" High-Definition True-Color LCD Touch Screen
Introducing the all-new 10.1-inch High-Definition Touch Screen Panel from Ricoma, designed for seamless operation and user-friendly navigation. This large, fully responsive display supports multi-touch and smooth interactions, making embroidery a breeze. With features like pre-programmed hoop parameters, Wi-Fi compatibility, and intuitive editing tools, this panel enhances your creativity and efficiency.
Large 10.1' Built-in High-Definition LCD Touchscreen
The Creator’s modern touchscreen interface with Wi-Fi and Chroma Embroidery Digitizing Software allows for easy wireless design transfers. With a memory capacity of 100 million stitches or 1,000 designs, you'll have ample space for all your creations. Automatic software updates keep the machine running smoothly, while three color change modes offer flexibility. You can also combine and save multiple designs as a single file, and the built-in file management system helps you stay organized and efficient.
Large 10.1" HD Touchscreen for Easy Design Control
Big, bright, and easy to use. The oversized 10.1" high-definition touchscreen gives you a crystal-clear view of your design, hoop area, and stitch path before you ever press start. This makes it easier to position designs accurately, preview details, and reduce mistakes — saving time, thread, and material. It feels more like using a tablet than a traditional machine panel.
Real-Time Stitch Progress & Job Monitoring
Stay in control from start to finish. The panel displays real-time stitch count, progress percentage, speed, and job status so you always know exactly where your design is in the process. This gives you confidence during long runs, helps you manage production more efficiently, and makes it easy to plan your workflow without constantly checking the machine manually.
Automatic Color Changes for Smooth, Uninterrupted Production
Let the machine handle color transitions for you. The intelligent control panel automatically manages color changes during your design, eliminating the need for manual intervention between thread colors. This means smoother runs, fewer interruptions, and faster overall production. It’s perfect for multi-color designs, helping you maintain consistent quality while saving time and reducing operator error.
Machine Specifications
Specifications
| MT-1201-10S | MT-1501-10S | MT-2001-10S | MT-1202-10s | MT-1502-10s | MT-2002-10s | |
|---|---|---|---|---|---|---|
| Panel | High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
| Heads | 1 |
1 |
1 |
2 |
2 |
2 |
| Needles | 12 |
15 |
20 |
12 |
15 |
20 |
| Machine Size | 830 x 770 x 1600 mm |
830 x 770 x 1600 mm |
830 x 770 x 1600 mm |
830 x 770 x 1600 mm |
830 x 770 x 1600 mm |
830 x 770 x 1600 mm |
| Net Weight | 145 kgs (319.7 lbs) |
145 kgs (319.7 lbs) |
145 kgs (319.7 lbs) |
190 kgs (418.9 lbs) |
190 kgs (418.9 lbs) |
190 kgs (418.9 lbs) |
| Gross Weight | 210 kgs (463 lbs) |
210 kgs (463 lbs) |
210 kgs (463 lbs) |
320 kgs (705.5 lbs) |
320 kgs (705.5 lbs) |
320 kgs (705.5 lbs) |
| Embroidery Area | 500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
| Head Interval | N/A |
N/A |
N/A |
605 mm (23.9 in) |
605 mm (23.9 in) |
605 mm (23.9 in) |
| Cap Rotation | 270° |
270° |
270° |
270° |
270° |
270° |
| Max. Speed | 1200 SPM |
1200 SPM |
1200 SPM |
1000 SPM |
1000 SPM |
1000 SPM |
| Voltage | 90-240 V |
90-240 V |
90-240 V |
90-240 V |
90-240 V |
90-240 V |
| Power Consumption | 0.2 KW |
0.2 KW |
0.2 KW |
0.2 KW |
0.2 KW |
0.2 KW |
| Hoops Included | 11 |
11 |
11 |
22 |
22 |
22 |
| Cap Attachments | 2 cap rings, 1 cap driver, 1 hoop station |
2 cap rings, 1 cap driver, 1 hoop station |
2 cap rings, 1 cap driver, 1 hoop station |
4 cap rings, 2 cap driver, 1 hoop station |
4 cap rings, 2 cap driver, 1 hoop station |
4 cap rings, 2 cap driver, 1 hoop station |
| Memory Capacoty | 100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
Specifications
| MT-1203-10S | MT-1503-10S | MT-2003-10S | MT-1204-10s | MT-1504-10s | |
|---|---|---|---|---|---|
| Panel | High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
High-Definition True-Color 10.1” LCD Touch Screen |
| Heads | 3 |
3 |
3 |
4 |
4 |
| Needles | 12 |
15 |
20 |
12 |
15 |
| Machine Size | 1910 x 770 x 1620 mm |
1910 x 770 x 1620 mm |
1910 x 770 x 1620 mm |
1910 x 770 x 1620 mm |
1910 x 770 x 1620 mm |
| Net Weight | 390 kgs (859.8 lbs) |
390 kgs (859.8 lbs) |
390 kgs (859.8 lbs) |
430 kgs (948 lbs) |
430 kgs (948 lbs) |
| Gross Weight | 580 kgs (1278.7 lbs) |
580 kgs (1278.7 lbs) |
580 kgs (1278.7 lbs) |
630 kgs (1388.9 lbs) |
630 kgs (1388.9 lbs) |
| Embroidery Area | 500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
500 x 360 mm |
| Head Interval | 605 mm (23.9 in) |
605 mm (23.9 in) |
605 mm (23.9 in) |
400 mm (15.8 in) |
400 mm (15.8 in) |
| Cap Rotation | 270° |
270° |
270° |
215° |
215° |
| Max. Speed | 1000 SPM |
1000 SPM |
1000 SPM |
1000 SPM |
1000 SPM |
| Voltage | 90-240 V |
90-240 V |
90-240 V |
90-240 V |
90-240 V |
| Power Consumption | 0.2 KW |
0.2 KW |
0.2 KW |
0.3 KW |
0.3 KW |
| Hoops Included | 33 |
33 |
33 |
40 |
40 |
| Cap Attachments | 6 cap rings, 3 cap drivers, 1 hoop station |
6 cap rings, 3 cap drivers, 1 hoop station |
6 cap rings, 3 cap drivers, 1 hoop station |
8 cap rings, 4 cap driver, 1 hoop station |
8 cap rings, 4 cap driver, 1 hoop station |
| Memory Capacoty | 100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
100 million stitches or 1000 designs |
Precision Meets Productivity
Every feature is designed to help you work faster and cleaner: an HD touchscreen, brighter front LED lighting, and a slimmer sewing arm for easier handling.
Experience Chroma
Digitizing Software
Chroma is designed to help you get the most out of your embroidery designs. With access to the latest features, powerful tools, and ongoing enhancements, you’ll always have cutting-edge software. Whether you’re a beginner or an expert, Chroma’s intuitive platform and advanced auto-digitizing make the entire design process easier.
Add-ons & Accesories
Please contact us for optional devices
Unmatched Training &
Support with Ricoma
Ricoma is committed to helping you succeed with industry-leading training and customer support. From getting started to scaling your operation, our expert team is here to guide you every step of the way. With extended support availability and personalized guidance, you’ll always have access to the help you need. Contact a Ricoma specialist to learn more.
