Revel 2 Direct-to-Film Transfer Printer

Revel 2 Direct-to-Film Transfer Printer

$14,995.00
Skip to product information
Revel 2 Direct-to-Film Transfer Printer
  • Revel 2 Direct-to-Film Transfer Printer
Revel 2 Direct-to-Film Transfer Printer

Revel 2 Direct-to-Film Transfer Printer

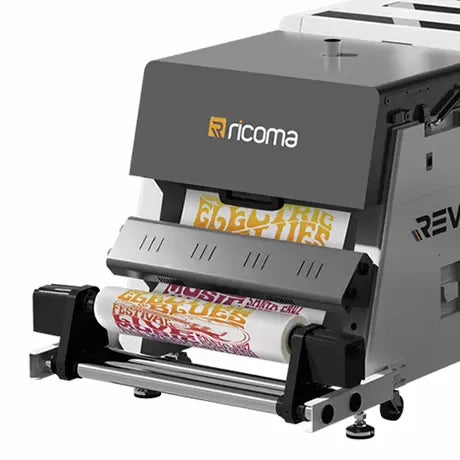

Unleash high-speed, high-quality printing with the Revel 2 DTF-2402T—a 24-inch-wide direct-to-film (DTF) printer designed for high-volume production. Engineered for precision and efficiency, this DTF printing powerhouse delivers vibrant, full-color transfers with exceptional durability on cotton, poly-cotton, polyester, blends, and more. Whether you're scaling your custom apparel business or streamlining bulk production, the Revel 2 DTF-2402T ensures crisp, high-resolution prints at lightning-fast speeds.

 Contact Us

Talk to a Ricoma Expert Today
Have questions or need pricing and shipping details? Our team is here to help. Click Contact Us below to submit your information, and a specialist will reach out to provide personalized guidance and answers to help you move forward with confidence.

Specifications

Product Dimensions 116.2"L x 35.9"W x 55"H
Print Area 24 inches
Print Head Technology Epson I3200
Print Speed 4-pass: 14 m²/hour 6-pass: 9 m²/hour
Printing Resolution Max: 720 x 1800
Color Control ICC or density curve
Operating Environment Temperature: 59°F - 86°F, Humidity: 35% - 65%
Electrical Requirements 220V, 50Hz, 30Amp
Operating System Compatibility Windows 7 or above
Connection Type Ethernet
File Format Type PRT, AI, EPS, SVG, PNG, TIFF, PDF, JPEG
Supported Garments Combed Cotton, Ring Spun Cotton, Organic Cotton, Polyester, Blended Fabrics, Poly-Cottons, Tri-Blends, Polyester-Spandex
Weight 735lb

Versatile Printing for All Your Needs

The Revel 2 DTF-2402T creates high-quality transfer sheets for anything from shirt labels to full-size designs, up to 24 inches wide. With gang sheet printing, you can combine multiple designs on one sheet, boosting efficiency and reducing waste.

High-Speed Production Power

The Revel 2 DTF-2402T is designed for high-volume output, producing up to 150 transfer sheets in under an hour. With multiple assembly stations, you can fully capitalize on this machine's remarkable speed and efficiency.

PET Film: The Secret to Perfect Transfers

The printer uses translucent PET transfer film, letting you preview your design when heat-pressing it onto garments for flawless results. Made from eco-friendly, recyclable plastic, this 0.75 mm thick film ensures smooth, high-quality transfers every time.

Dual-Head Technology for Stunning, Vibrant Prints

The Revel 2 DTF-2402T uses a dual print-head system for vibrant, durable prints. One head applies CMYK colors, while the other adds a white underbase for perfect opacity. With its Ultra-Color system, it produces high-resolution, realistic images on film, ensuring smooth, stunning transfers on any material.

Frequently Asked Questions
What is the maximum print width of the Revel 2 DTF-2402T?

The Revel 2 DTF-2402T can print designs up to 24 inches wide, making it perfect for a variety of projects, from small labels to large prints.
Can the Revel 2 print gang sheets?

Yes, the Revel 2 is designed to print gang sheets, allowing you to place multiple designs on one sheet for efficient production and minimal waste.
What materials can I print on with the Revel 2?

The Revel 2 creates transfer sheets that can be applied to a wide range of materials, including cotton, polyester, blends, and more, ensuring versatility for all your custom apparel needs.
How fast can the Revel 2 produce transfer sheets?

The Revel 2 is built for high-volume production and can print up to 150 transfer sheets per hour, making it ideal for businesses that require quick turnaround times.

Unmatched Training &
Support with Ricoma

Ricoma is committed to helping you succeed with industry-leading training and customer support. From getting started to scaling your operation, our expert team is here to guide you every step of the way. With extended support availability and personalized guidance, you’ll always have access to the help you need. Contact a Ricoma specialist to learn more.
