SWM SERIES
1/8

SWM SERIES

The SWM Series is perfect for embroidery on caps, bags, denim, finished garments and plenty more!


Contact Us

Talk to a Ricoma Expert Today
Have questions or need pricing and shipping details? Our team is here to help. Click Contact Us below to submit your information, and a specialist will reach out to provide personalized guidance and answers to help you move forward with confidence.

Specifications

Models SWM-1201-10S/SWM-1501-10S/SWM-2001-10S/SWM-1202-10S/SWM-1502-10S/SWM-2002-10S
Product Dimensions L: 1,035mm W: 920mm H: 1,700mm
Number of Needles 12 / 15 / 20
Heads 1 / 2
Maximum Embroidery Area 800mm x 500mm [ 31.5” x 19.7” ]
Weight 270 kilograms [595.3 lbs] / 410 kilograms [903.9 lbs]
Connection Type Connect via USB or Ethernet
File Formats DSB, DST, ZSK and FDE
Languages English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic,Italian, Czech, Polish
Ideal for Embroidering T-shirts, hoodies, caps and hats, jackets, polo shirts, bags, denim, sportswear, baby/children clothing, towels, tablecloths, pillowcases, scarves, aprons, uniforms, and more!

Features

  • Suitable for embroidery on flats, caps, fnished garments and more
  • Perfect for startups or home businesses
  • High defnition true color 10-inch LCD touch screen
  • Maximum embroidery area: 800 mm x 500 mm, or 31.5”x 19.7”
  • Lightweight – 190 kgs (418.9 lbs) / 250kgs (551.2lbs)
  • Heavy duty steel stand with wheels to ensure stability and mobility
  • Maximum speed: 1,000 stitches per minute
  • Memory capacity: 100 million stitches or 1,000 designs
  • Machine reads multiple design formats, such as DST, DSB and more
  • 270° wide angle cap system
  • USB input or direct transmission from PC via LAN port or wireless
  • Environmentally friendly packaging
  • Networkable and Wi-Fi capable
  • Servo motor 150 W – lowest power consumption in the industry!
  • Built-in universal power supply 110V/60Hz and 200V/50Hz (self-adaptable worldwide)
  • DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
  • Emergency stop button
  • Automatic thread trimmer
  • Thread break detection
  • Easily apply appliqué, sequin, boring or cording
  • Recessed USB port to protect USB flash drive
  • Optional laser tracing device available
  • Multiple hoop sizes for a variety of embroider needs
  • Automatic memory retention

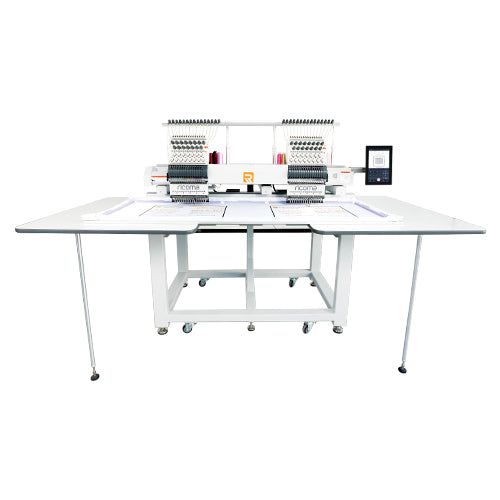

EXTENDED EMBROIDERY AREA

Embroidery Area Machines
SWM-3220

830 x 520 mm / 32.7 x 20.5 in

SWM-1201-10S / SWM-1501-10S / SWM-2001-10S

SWM-4820

1230 x 520 mm / 48.4 x 20.5 in

SWM-1201-10S / SWM-1501-10S / SWM-2001-10S

SWM-3220-2

1630 x 520 mm / 64.2 x 20.5 in

SWM-1201-10S / SWM-1501-10S / SWM-2001-10S

Precision Meets Productivity

Every feature is designed to help you work faster and cleaner: an HD touchscreen, brighter front LED lighting, and a slimmer sewing arm for easier handling.

Display

  • User-friendly interface
  • Easy to operate
  • New ergonomic touch screen allows easy and comfortable operation by right-hand thumb
  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Built-in button from 172° to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • One-step tracing key directly on the main screen
  • External 100° button and trimming button
    Multiple languages: English, Chinese,
  • Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more

Experience Chroma
Digitizing Software

Chroma is designed to help you get the most out of your embroidery designs. With access to the latest features, powerful tools, and ongoing enhancements, you’ll always have cutting-edge software. Whether you’re a beginner or an expert, Chroma’s intuitive platform and advanced auto-digitizing make the entire design process easier.

Unmatched Training &
Support with Ricoma

Ricoma is committed to helping you succeed with industry-leading training and customer support. From getting started to scaling your operation, our expert team is here to guide you every step of the way. With extended support availability and personalized guidance, you’ll always have access to the help you need. Contact a Ricoma specialist to learn more.
